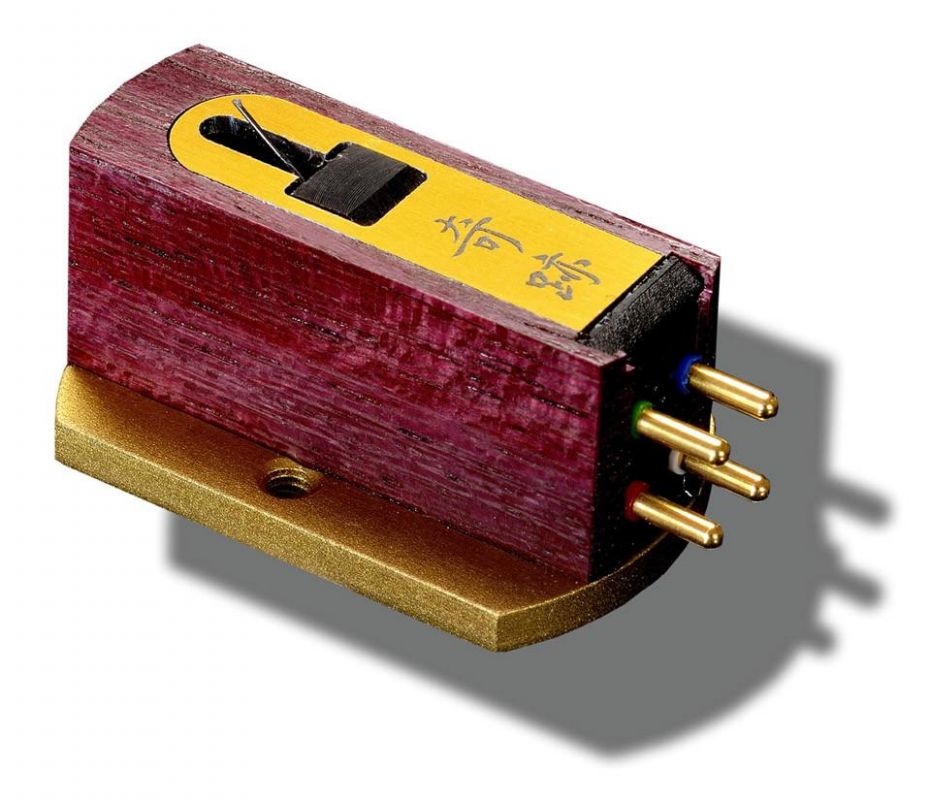

KISEKI

Purple Heart NS

Product Line: .
Product Type: .
  • Price- $3,499
  • Body -PurpleHeart Wood
  • 30 mm- Long
  • Cantilever- Solid Boron Rod
  • 0.3 mm Diameter
  • Stylus -0,12 x 0,12
  • Nude Line-Contact Diamond
  • Mirror Polished
  • Stylus Tip Radius 4 x 120 µm
  • Vertical Tracking Angle (VTA) 20 Degrees
  • Coil -Pure Iron Coil Body
  • Weight- 7 Grams

  • Output Voltage 0.48 mV at 5 cm/s
  • Internal Impedance 42 Ohms
  • Frequency Response 20 - 30.000 Hz ± 1 dB
  • Channel Balance 0.2 dB
  • Channel Separation 35 dB at 1 kHz
  • Tracking Ability
  • 315 Hz
  • 2.6g Tracking Force 80 µm
  • Dynamic Compliance 16 µm/mN
  • Recommended Loading 400 Ohms
  • Recommended Tracking Force 2.0 – 2.6 Grams
  • Optimum Tracking Force 2.4 Grams

Specifications
